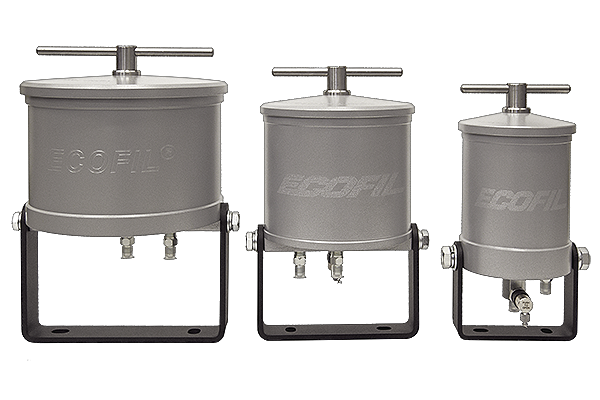

Filtration units ECOFIL T-series are developed for cleaning of grease oil in combustion engines and other grease applications. They are produced in five sizes according to the tank volume being filtered. All filtration units ECOFIL are treated against corrosion and tested and approved for operation pressure up to 8 Bar.
Microfiltration required reduced oil flow (max. 3 l / min for T-35). Reduced oil flow is achieved by opening the outlet side of the filter body by internal resistance of the filter insert. The result is effect on oil pressure.
The two leakproof edge of the filter bed to make it difficult to even a small quantity of oil to avoid filtration.
All filter housings T-series are equipped with a mounting bracket for attachment to a vertical or horizontal surface.
| Normal flow | 1,0 l /min. | |
| Filtration ability | 1-5 µm | |
| Maximum oil temperature | 80 °C | |
| Maximum tank volume | 250 liters | |
| Output oil viscosity | 9 - 220 cSt | |
| Operational pressure | 5 / 8 bar | |
| Hydraulic connections | input | thread 1/4" |
| output | thread 1/4" | |
| Outer dimensions | ø 122 x 312 mm | |
| Weight | 3,23 kg | |
| Filter element | 101 | |
| Material | steel | |
| Normal flow | 2,0 l / min. | |
| Filtration ability | 1-5 µm | |
| Maximum oil temperature | 80 °C | |
| Maximum tank volume | 500 liters | |
| Output oil viscosity | 9 - 220 cSt | |
| Operational pressure | 5 / 8 bar | |
| Hydraulic connections | input | thread 1/4" |
| output | thread 1/4" | |
| Outer dimensions | ø 159,5 x 308,5 mm | |
| Weight | 3,23 kg | |
| Filter element | 201 | |
| Material | aluminium | |
| Normal flow | 3,0 l / min. | |
| Filtration ability | 1-5 µm | |
| Maximum oil temperature | 80°C | |
| Maximum tank volume | 1200 liters | |
| Output oil viscosity | 9 - 220 cSt | |
| Operational pressure | 5 / 8 bar | |
| Hydraulic connections | input | thread 1/4" |
| output | thread 1/4" | |
| Outer dimensions | ø 212 x 312 mm | |
| Weight | 4,07 kg | |
| Filter element | 351 | |
| Material | aluminium | |
