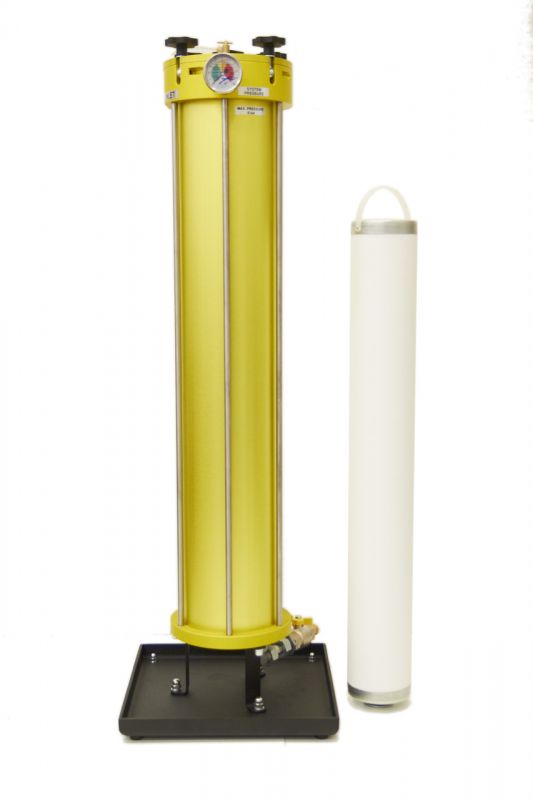

Candle filter housing (ECOMIL) is designed for ultra-fine filtration cutting, grinding, hydraulics, lubrication, cooling and possibly other types of oil by alternative types of filtering elements (candles).
- filter element ECOMIL10PP – is designed for filtration all types of oil and cutting liquids (10µm), material: polypropylene
- filter element ECOMIL05PP – is designed for filtration all types of oil and cutting liquids (5µm), material: polypropylene
- filter element ECOMIL05PP – is designed for filtration all types of oil (2µm), with the ability to absorb the water, material: cellulose
| Normal flow volume | ≥ 25 l / min. |
| Filtration ability | 2 - 10 µm |
| Maximum oil temperature | 80°C |
| Min. volume of oil tank | 250 liters |
| Viscosity of output oil | 9 - 220 cSt |
| Max. operating pressure | 8 bar |
| Hydraulic connection input | G1" |
| Hydraulic connection output | G1" |
| Outer dimensions | ø 245 x 1250 mm |
| Base dimensions | 400 x 400 mm |
| Weight | 40,5kg |
| Filter element | ECOMIL |
