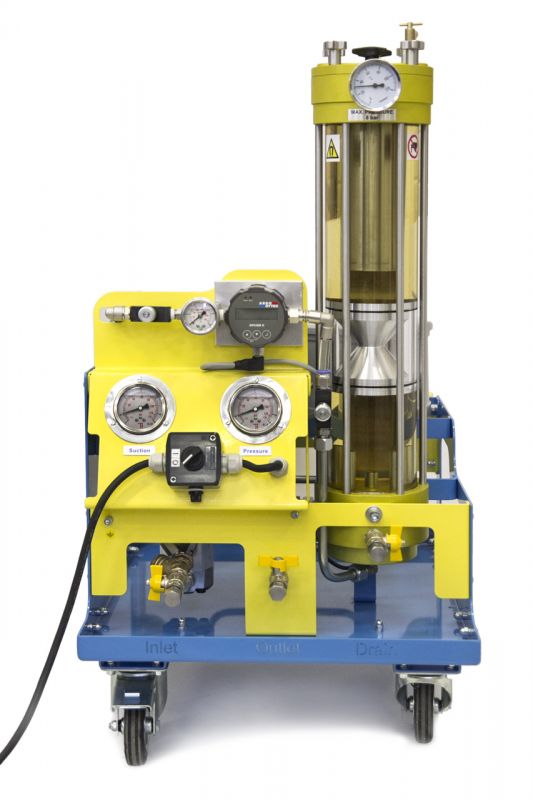

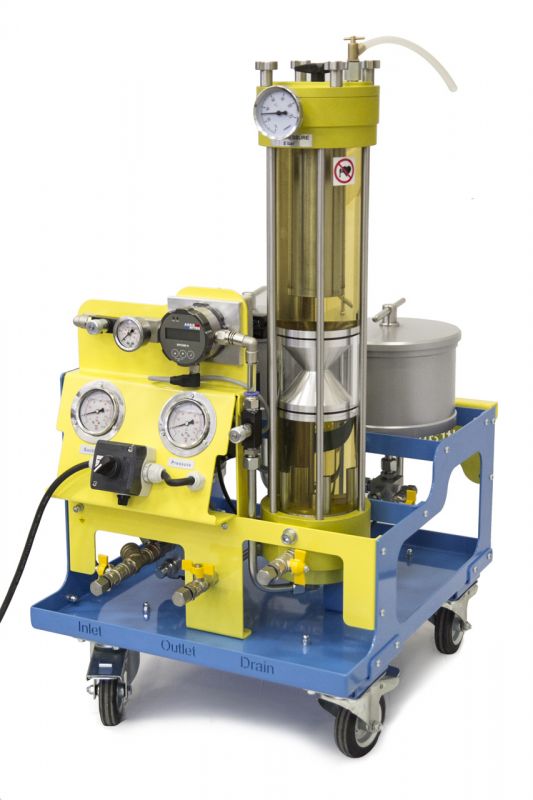

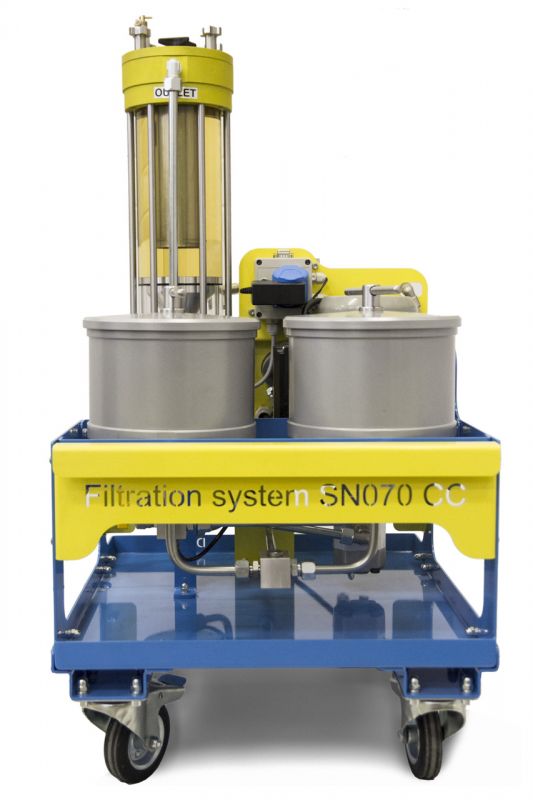

Ultra-fine filtration and flushing gear-boxes of robots in automatic mode combined with precise oil metering.
Extra equipment:

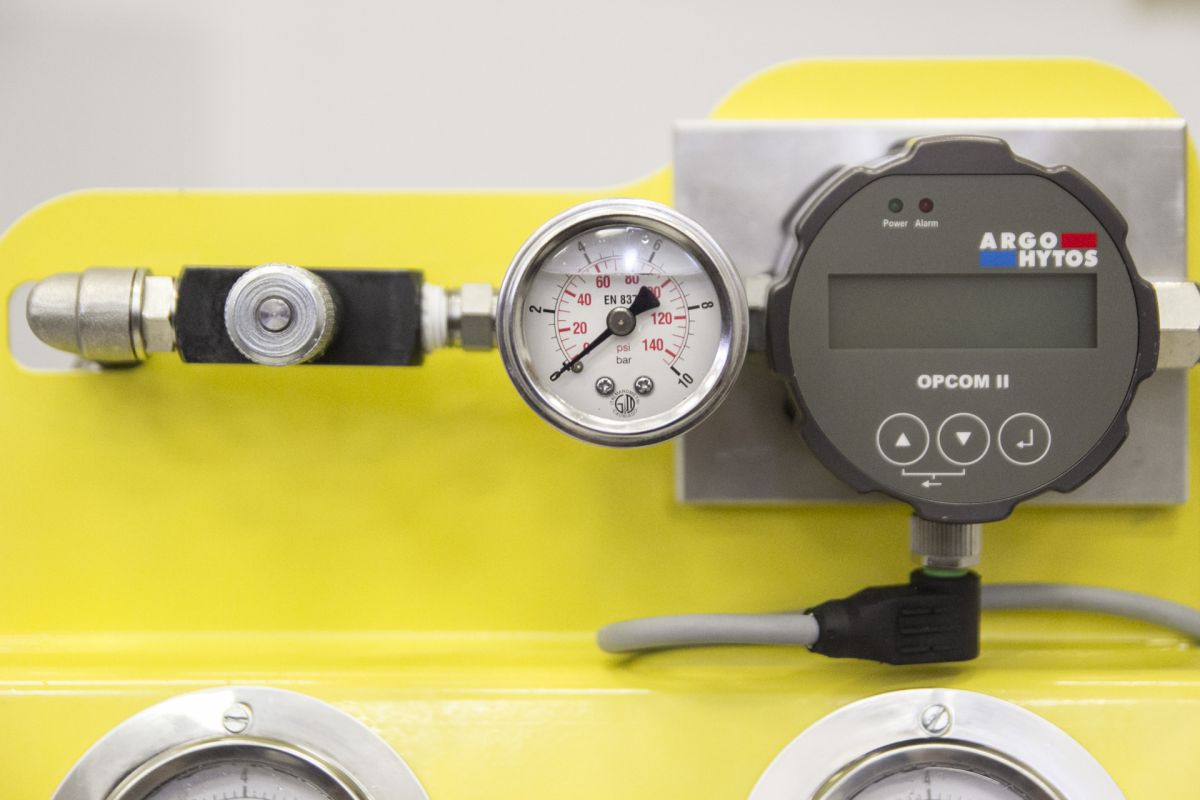

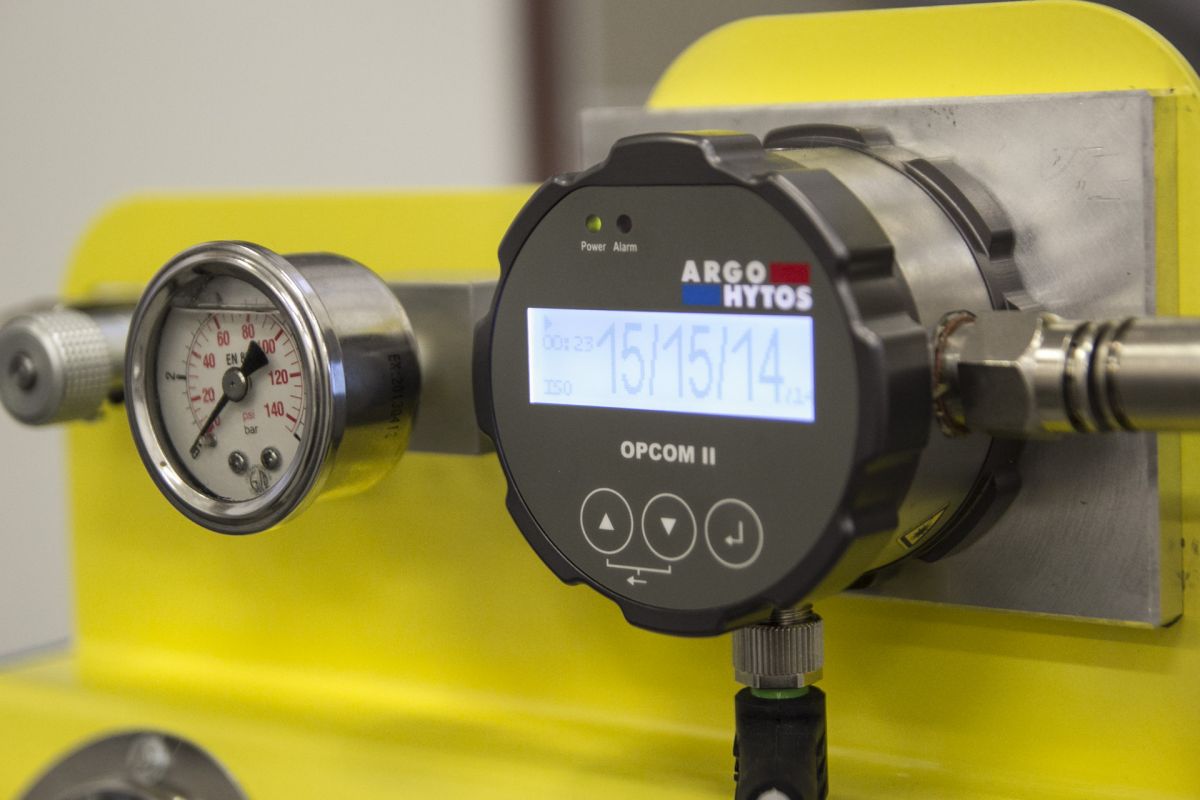

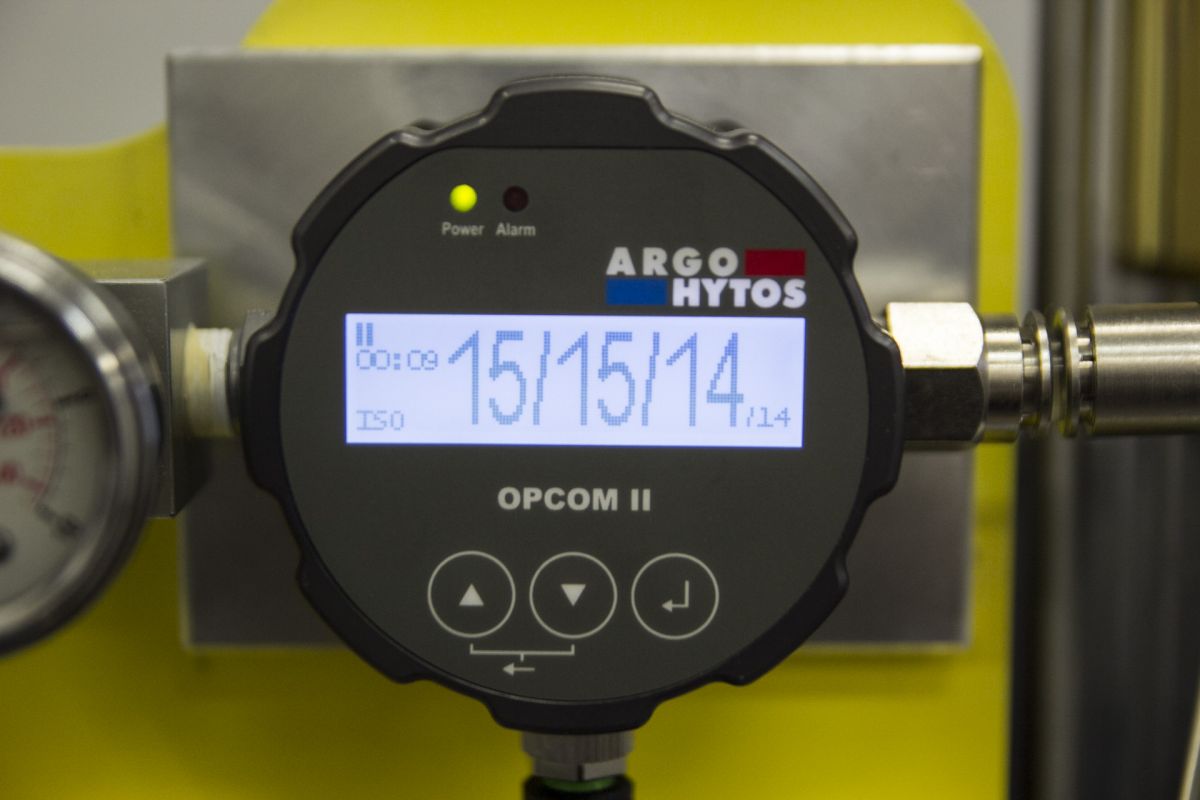

- Laser particle measurement
- LCD Monitor
| Oil tank volume |
max. 1 000 liters |
| El. motor |
0,25 kW |
| Normal flow volume |
3 lit. / min. |
| Max. pressure |
8 Bar |
| Heating |
1 x 2,5 kW |
| Input and output |
G 1/2 " |
| Number of filltration units |
2 pcs |
| Suction filter of pump protection |
1 pc, 250 µm |
| Achieved purity class |
NAS 5/6 |
| Achieved max. volume of water in oil after filtration |
100 p.p.m. |
| After drying of elements lower than |
10 p.p.m. |
Number of filtration elements
|
2 pcs |
| Max. operating temperature |
80 °C |
| Viscosity |
6 - 220 cSt |
| Dimensions (length x height x width) |
860 x 590 x 1050 mm |
| Connection to electricity |
3x230V/400V (50Hz)
230V (50Hz) |
